Specifications

• We have shortened the Height & Length of the valve case, but made the width wider for additional balance.
• Valve Plate: Increased the durability by using 6 bolts instead of 4 bolts.

• After the piston hits the chisel, and the piston is retracting back up the cylinder, while the flow energy is harnessed up to 15% to be applied on the flow energy back down. (B600, B800)

• 2 stroke selector is located on the side of Cyl inder as a standard(B50~B180) to change from long stroke to short stroke according to operator's need for optimal performance.

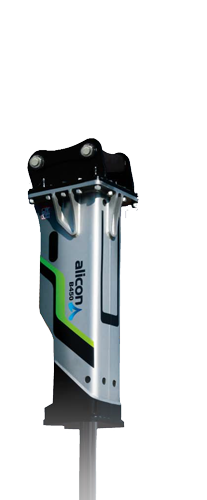

• By using only NOK seals on the alicon series, we have achieved longer seal life.
• On models B210 and up, an additional square buffer seal was added to increase the durability of the gas seals, step seals, and the piston.
• This buffer seal also helps to minimise the piston's shaking action.

• ABF(Anti Blank Firing) System is provided as a standard starting from B50 to B800 Model.
• This system will help to protect the Chisel pins, T/Bolts and Front heads from Blank Firing, and it is suitable for all kinds of working environment
• When Auto control valve is turned on, breaker operation will automatically start again by giving a small amount of pressure to Chisel, It will automatically stop when chisel is lift up or after breaking.
• But, from B600 to B800 models can not turn off the auto control valve to protect the breaker more perfectly
• The distinctive feature will protect the equipment from Secondary breaking and amateur's operation by having the functioning of Anti Blank Firing automatically on breaker.
